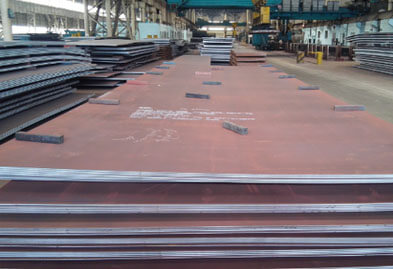

A516 GRADE 70 STEEL PLATEs
Are you trying to find high-quality steel plates that meet NACE and HIC standards? If so, then you've got come to the proper place.
ASTM 516 Grade 70 Steel Plate, >ASTM 516 Grade 70 Steel Plate Distributors, Authorized Distributors of ASTM 516 Grade 70 Steel Plate, ASTM 516 Grade 70 Steel Plate Importers, Authorized Importers of ASTM 516 Grade 70 Steel Plate, ASTM 516 Grade 70 Steel Plate Stockist ,Authorized Stockist of ASTM 516 Grade 70 Steel Plate, ASTM 516 Grade 70 Steel Plate Dealers, Authorized dealers of ASTM 516 Grade 70 Steel Plate, ASTM 516 Grade 70 Steel Plate Suppliers, ASTM 516 Grade 70 Steel Plate Exporters, ASTM 516 Grade 70 Steel Plate Traders.
ASTM 516 Grade 70 Steel Plate Distributors in Mumbai, Authorized Distributors of ASTM 516 Grade 70 Steel Plate in Mumbai, ASTM 516 Grade 70 Steel Plate Importers in Mumbai, Authorized Importers of ASTM 516 Grade 70 Steel Plate in Mumbai, ASTM 516 Grade 70 Steel Plate Stockist in Mumbai, Authorized Stockist of ASTM 516 Grade 70 Steel Plate in Mumbai, ASTM 516 Grade 70 Steel Plate Dealers in Mumbai, Authorized dealers of ASTM 516 Grade 70 Steel Plate in Mumbai, ASTM 516 Grade 70 Steel Plate Suppliers in Mumbai, ASTM 516 Grade 70 Steel Plate Exporters in Mumbai, ASTM 516 Grade 70 Steel Plate Traders in Mumbai.
Sai Steel Engineering & Co. is your one-stop shop that gives high-strength ASTM A516 GR.70 (NACE+) materials. HIC) in India and globally. The provided ASTM A516 GR.70 NACE sheet range is extremely popular and thought of the simplest , which is why they're widely employed by boiler manufacturers and manufacturing companies.
ASME SA516 GR.70 HIC may be a steel plate that has been tested for resistance to hydrogen cracking. SA516 GR.70 HIC boiler plates are mainly utilized in pressure vessels and boilers, oil and gas and petrochemical industries. Has passed HIC ASTM A516 GR test.70 steel plates are less expensive than austenitic chrome steel.
This helps reduce maintenance costs and overall service life, while also providing greater safety than standard boiler plates. Contact us now to urge a free quote or send us a full description. We are here to assist you!
SA 516 Gr. 70 (NACE+HIC) Plates Specification
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement |
| Impact tested | -52° C |
| Tempering | Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F. |
| Applications | Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service. |
Equivalent Grades of SA 516 Gr. 70 (NACE+HIC) Plates
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
Chemical Composition of SA 516 Gr. 70 (NACE+HIC) Plates
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V | C.E. |
| 0.10/ 0.22 | 0.6 | 1/ 1.5 | 0.010 | 0.002 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 | 0.420 (max) |
Mechanical Properties of SA 516 Gr. 70 (NACE+HIC) Plates
| Tensile strength MPa (ksi) | Yield strength MPa (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 490-260 (70-90) | 265 (38) | 17 | 21 |
